Place of Origin : Jiangsu, China (Mainland)
Brand Name : Konson
Certification : CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number : KS-Gabion
MOQ : 600 Square Meter/Square Meters or as your request
Price : Discuss in mail
Packaging Details : Flat bundle, 50 sets/bundle, binding with steel strape or strands, some rolls. Customer's suggestion
Delivery Time : About 10 days after the deposit, according to the quantity.
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,or as your request
Supply Ability : 6,000 Square Meter/Square Meters per Day or as your request
Port : Shanghai
Material : Galvanized Iron Wire
Type : Hexagonal wire mesh
Application : Gabions
Hole Shape : Hexagonal
Aperture : 60*80;80*100;100*120;120*150
Wire Gauge : 2.0-4.0mm
Zinc coating : 245-290g/m2
Color : As your design
Heavy Galvanized Welded Gabion Baskets And Mattress For Protection Project

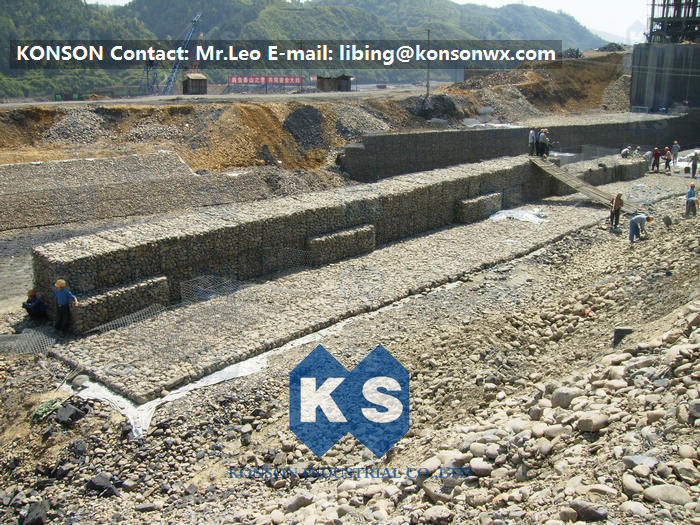

Gabion box is basket or mesh roll made of twisted hexagonal wire Mesh, Gabion box is filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings and weirs for erosion control projects.
GABIONS (Higher than 1m in height) and MATTRESSES (Less than 1m in height) consist of rectangular units, fabricated from a double-twisted hexagonal mesh.
Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built. Gabions and mattresses are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc.
Specification:
Standard sizes in mesh 80mm x 100mm nominal, wire diameter 2.7mm, Heavily zinc galvanised wire or Galfan coated with a 95%Zinc + 5% Aluminium Alloy.
Length (m) | width (m) | height (m) | diaphragm | volume | tolerance |
2 | 1 | 0.3 | 1 | 0.6 | Length+/-3% |
3 | 1 | 0.3 | 2 | 0.9 | |
4 | 1 | 0.3 | 3 | 1.2 | |
2 | 1 | 0.5 | 1 | 1 | |
3 | 1 | 0.5 | 2 | 1.5 | |
4 | 1 | 0.5 | 3 | 2 | |
1 | 1 | 0.5 | 0 | 1 | |
1.5 | 1 | 1 | 0 | 1.5 | |
2 | 1 | 1 | 1 | 2 | |
3 | 1 | 1 | 2 | 3 | |
3 | 2 | 1 | 2 | 6 | |
4 | 1 | 1 | 3 | 4 |
Engineering Applications:
Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Port project
Keep off dust wall
Roadway protection.
In Konson's workshop:
![]() |
Heavy Galvanized Welded Gabion Baskets And Mattress For Protection Project Images |
